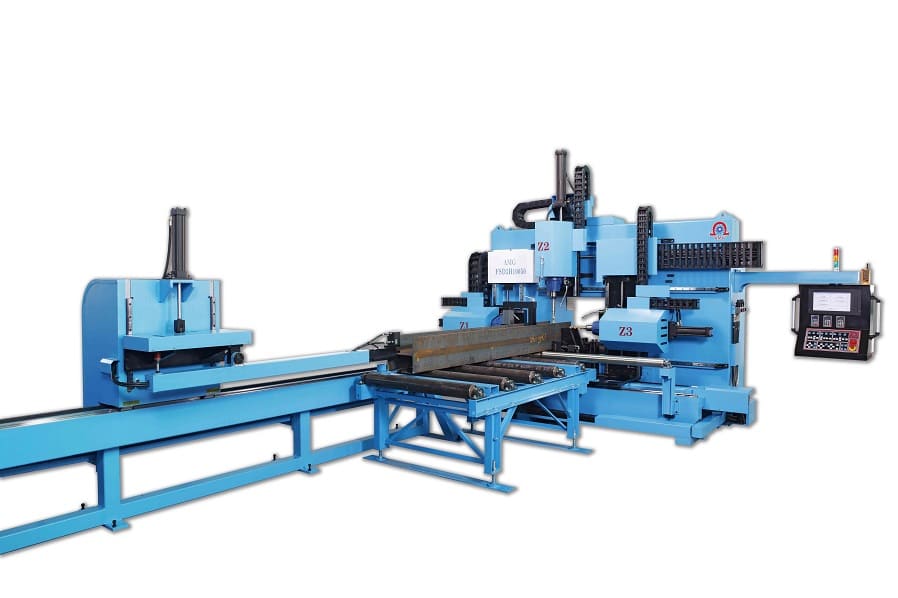

- CNC H-Beam Drilling Machine
Product Specification
| Drilling Capacity | 150 x 100 mm – 1800 x 1500 mm | ||
|---|---|---|---|
| H-Beam Length | 6M, 12M, 15M, 18M | ||
| Number of Spindles (sets) | 3 | ||
| Drilling Max Hole Diameter | 32 mm, 50 mm | ||
| Drilling Max Thickness | 50 mm | ||
| Feeding Device | AC Servo Feeding Arm (Rack & Pinion) | ||
| Feeding Accuracy | 0.1 mm | ||
| Spindle Motor Power | 7.5 HP | ||
| Variable RPM | 100 – 600 RPM | ||
| Spindle Taper | MT4 | ||
| Drilling | Hydraulic | ||
| Positioning Accuracy | +/- 0.1 mm | ||
| Cooling | Outside Cooing | ||
| Option | Inlet and Outlet Roller Supports | ||
