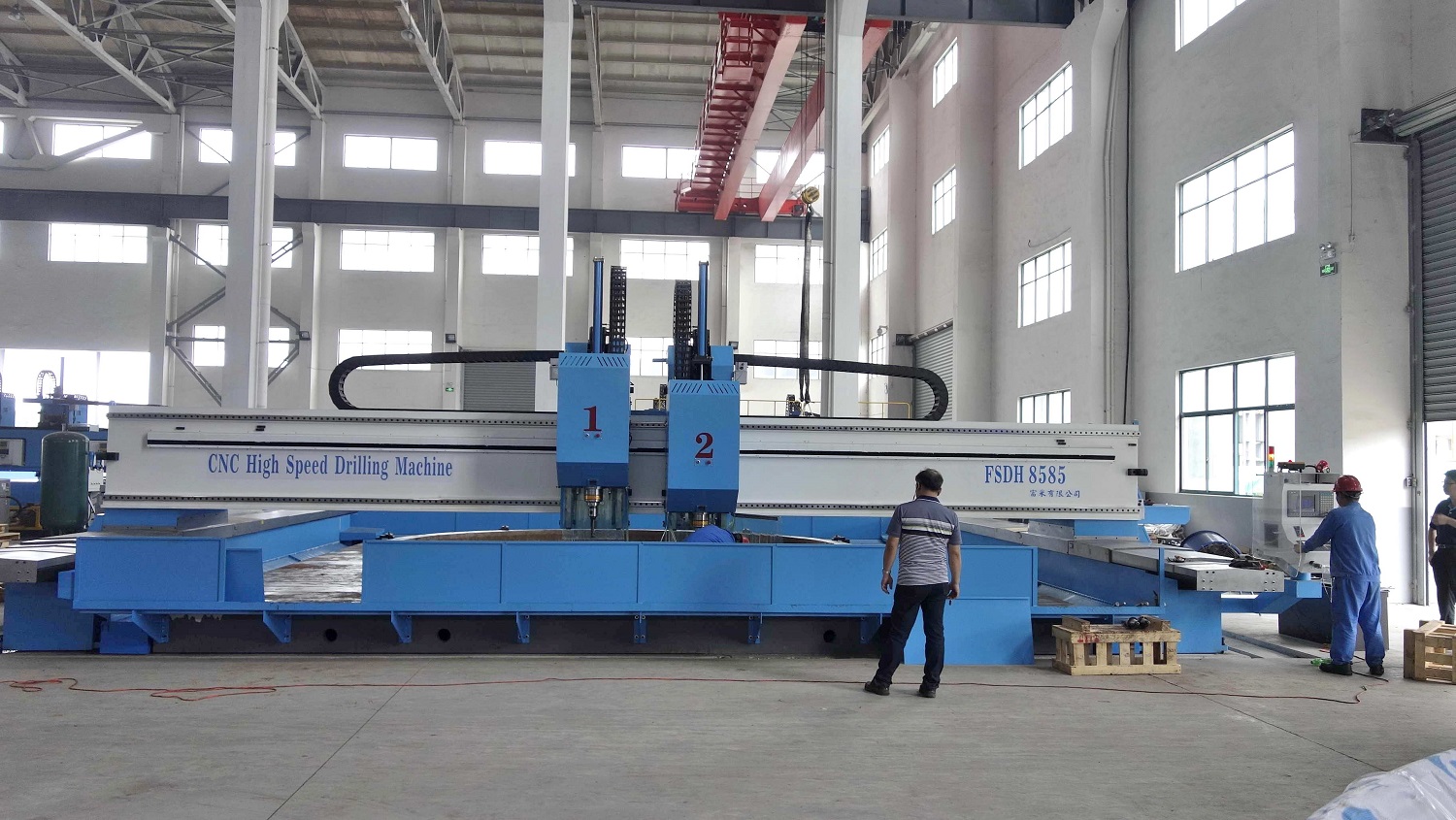

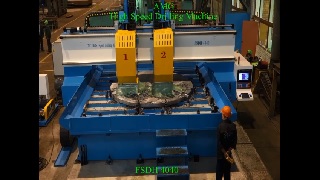

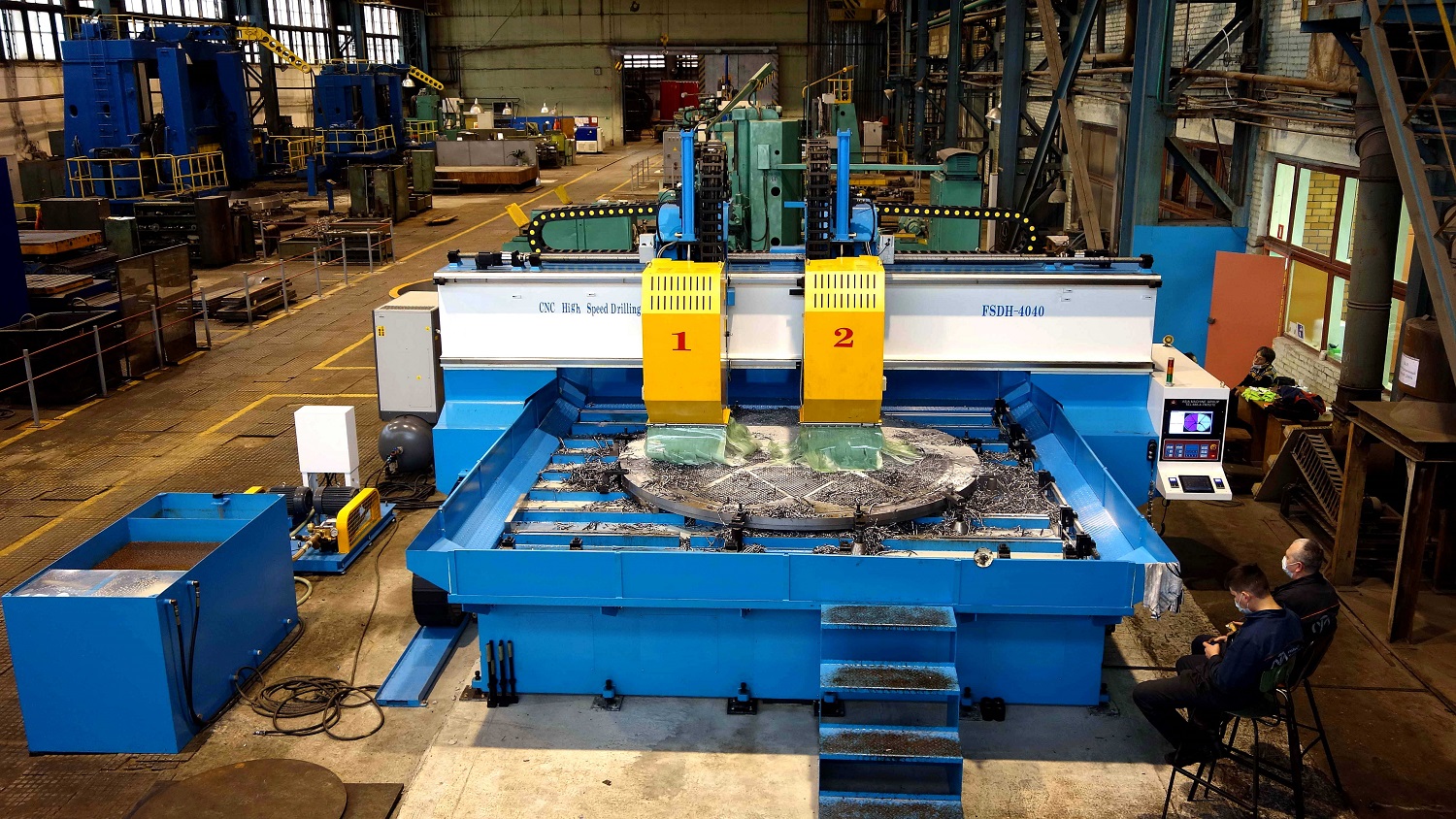

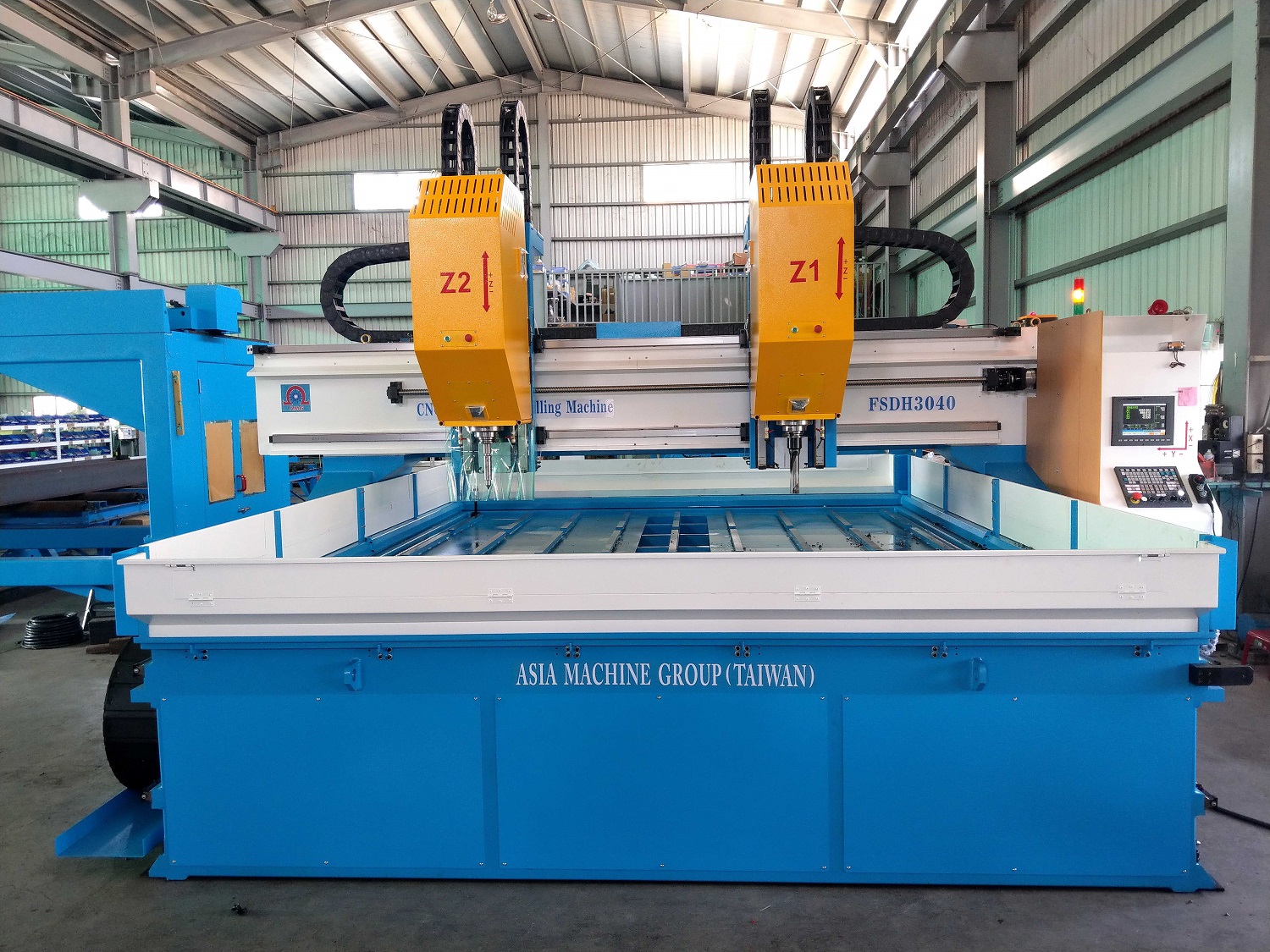

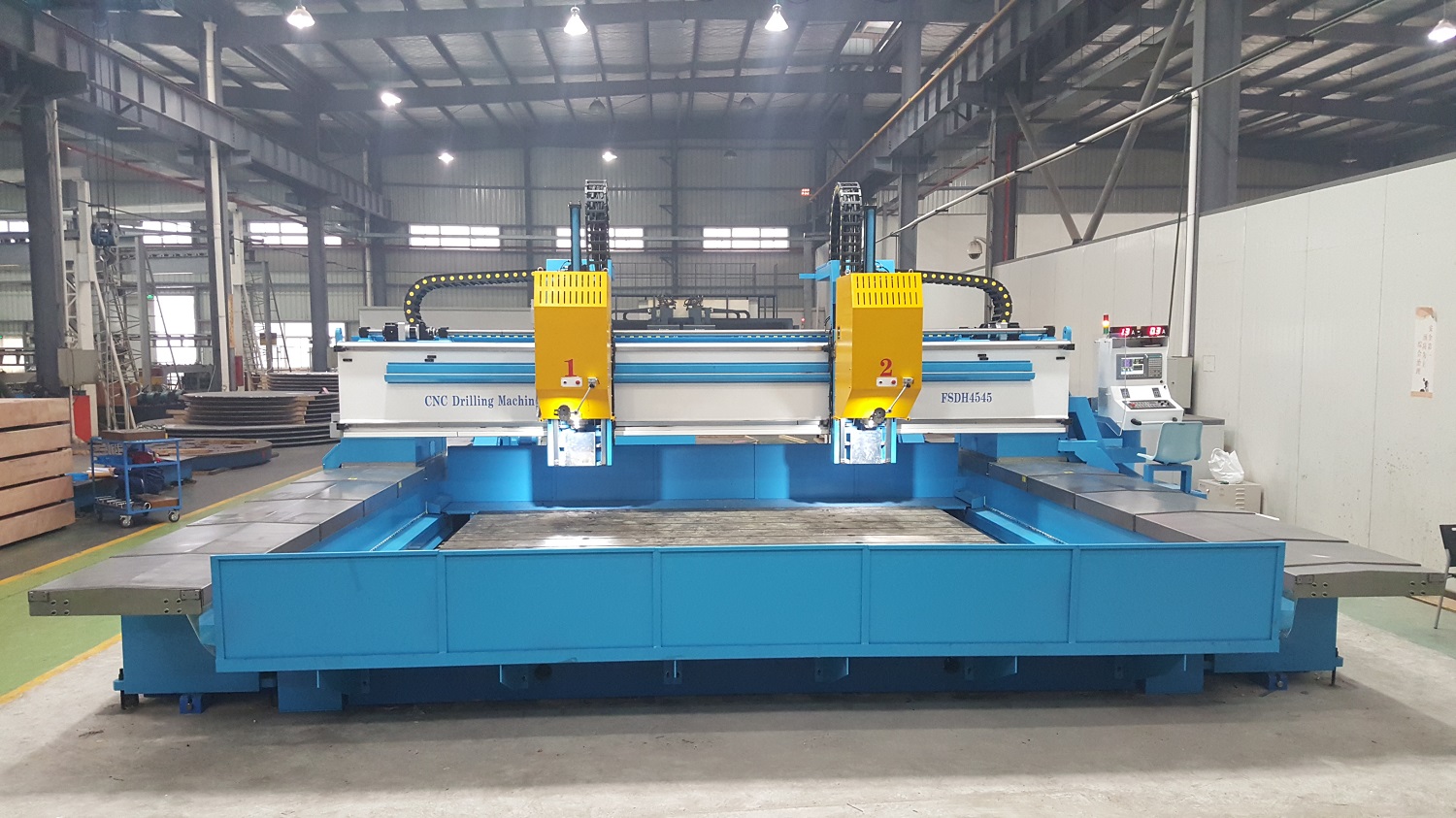

- High Speed Table Type - FSDH
Product Specification
| Model | 1020 | 1530 | 2040 | 3030 | 4040 | 5050 | 6060 | 8080 |
|---|---|---|---|---|---|---|---|---|
| Working Area | 1M*2M | 1.5M*3M | 2M*4M | 3M*3M | 4M*4M | 5M*5M | 6M*6M | 8M*8M |
| Drilling Max Thickness(mm) | 100, 200, 250 | |||||||
| Drilling Hole Diameter (mm) | 50, 100 | |||||||
| Variable RPM | 100 - 3000rpm | |||||||
| Motor Horsepower | 30HP, 40HP, 50HP | |||||||
| Number of Spindles (sets) | 1 or 2 | |||||||
| Spindle Taper | BT40 or BT50 | |||||||
| X-Axis | Ball Screw | |||||||
| Y-Axis (rail) | Ball Screw or Rack & Pinion | |||||||
| Z-Axis (vertical) | AC Servo | |||||||
| Positioning Speed | 9000 mm/min | |||||||
| Positioning Accuracy | ±0.03 mm (ball screw) or ±0.1 mm (rack and pinion) | |||||||
| Cooling | Outside Cooling or Cooling through Spindle (CTS) | |||||||
| Option | Tapping function | |||||||
| Option | Milling function | |||||||
