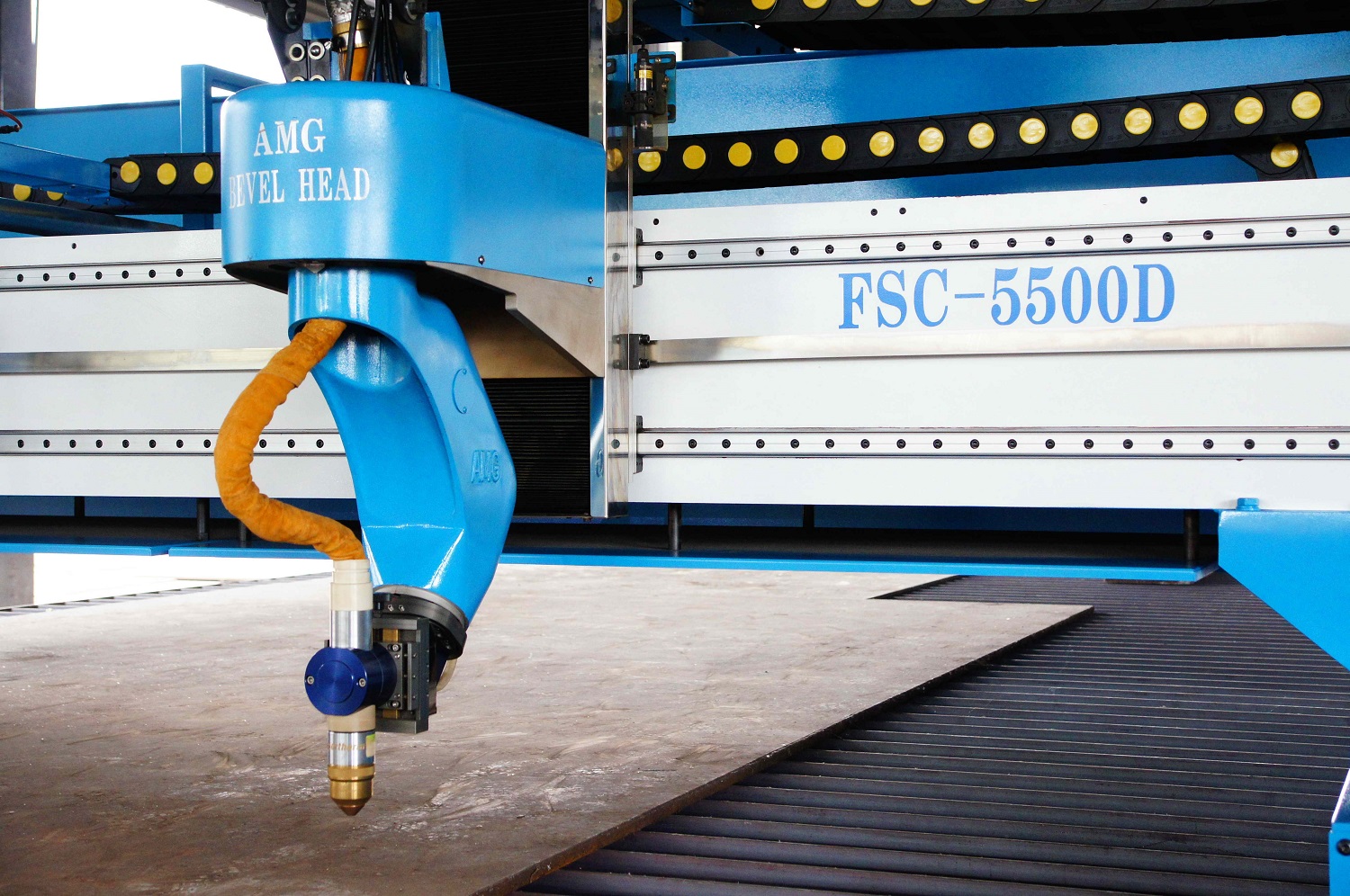

Bevel Head Device

The function of auto beveling head (can cut K, V, Y, X)

1. Quick Response - high RPM of circulation axis and angle axis

2. High Accuracy - servo control of these axes
    Circulation axis = +/- 720 degrees, accuracy 0.1 degree
    Angle axis = +/- 50 degrees, accuracy 0.1 degree
    Z up/down axis, accuracy = 0.05 mm

3. Can set any different angle in 1 file

4. Includes plasma initial height signal
​
5. Includes plasma torch protection signal and structure
